2014-2018 RAM 2500 6.7L DIESEL 4WD

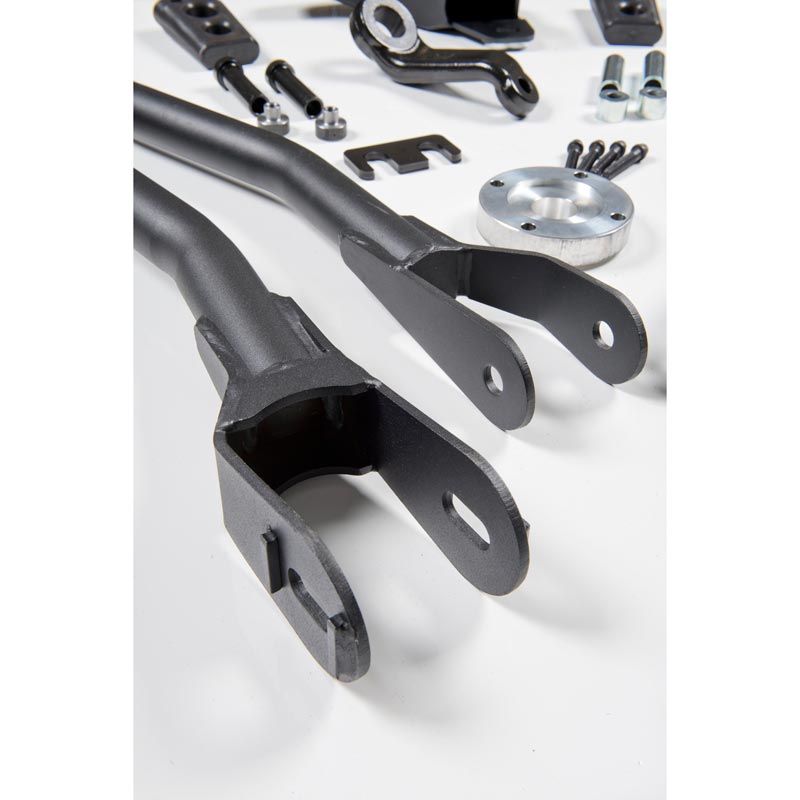

Upgrade your Ram 2500 6.7L Diesel 4WD with a BDS 4" 4-Link Lift Kit. The heart of this system is the 4-link conversion that replaces the factory radius arm. Key benefits doing this include increased stability, wheel travel, and improved handling across all terrains. The 4-link design limits caster change to less than 1- degree of change throughout wheel travel for better handling, steering control, and overall drivability. Included are a pair of massive frame-mounted brackets precision welded and engineered to locate the new upper and lower control arms to create the optimal suspension geometry for late model Ram trucks. The 4-link brackets are fabricated from 1/4" thick steel and wrap around the frame as well as the factory radius arm brackets to create an extremely sturdy mount for the new arms. Removal of the factory radius arm brackets is not required allow the brackets to stay intact to speed up the installation time and make these kits reversible. The upper and lower control arms are built from 2" OD x 3/16" wall DOM tubing for the strength to take any abuse you can throw at them. They utilize large 2.5" OD polyurethane bushings to isolate road vibrations and are formed inward to allow for extra tire clearance while repositioning the front axle slightly forward for increase tire clearance to the backside of the front fenders when turned. These arms are finished in a durable textured black powder coating and use grease fittings for easy servicing. The additional front height comes from a pair of specially designed progressive rate ProRide coil springs. The coils have been engineered and tested to improve the ride quality and performance across all terrains while holding up to the rigors that 3/4-ton and 1-ton truck owner's demand. A heavy-duty track bar relocation bracket is included to recenter the front axle once lifted as well as a forged drop pitman arm to correct steering angles. Sway bar relocation brackets are used to reposition the front sway bar assembly and the supplied brake line brackets allow for the easy adjustment for the stock lines to be reused with the lift kit. Customize the kit with your choice of BDS NX2 gas shocks or upgraded FOX 2.0 performance series IFP gas shocks. This system is backed by the BDS "No Fine Print Warranty" which covers the kit and components against breakage, sagging, bending, and other failures that result from standard usage. FEATURES: Heavy-Duy 4-Link Setup Sway Bar Drop Brackets Forged Drop Pitman Arm Brake Line Relocation Brackets HD Track Bar Relocaton Bracket Extended Polyurethane Bump Stops Precision-Built Transfer Case Indexing Ring All Necessary Mounting Hardware Included Covered By The BDS "No Fine Print" Warranty BDS Diesel Specific Progressive Rate Coil Springs Choose Between BDS NX2 Nitro Series Shocks Or Fox 2.0 Performance Series Shocks
Parts BDS1602FS, BDS1602H, BDS1632FS, BDS1632H: 37x12.50 w/17", 18", 20"x9 and 5.625" back spacing 35x12.50 w/17", 18", 20"x9 and 4.5" back spacing Parts BDS697FS, BDS697H: 37" x 12.50 w/17" x 9" and 5.625" back spacing 35" x 12.50" w/18" x 9" and 4.5 back spacing 35" x 12.50" w/20" x 9" and 4.5 back spacing Parts BDS1644FS, BDS1644H: 37x12.50 w/17x9/18x9/20x9 and 5.625" back spacing 35x12.50 w/17x9/18x9/20x9 and 4.5" back spacing

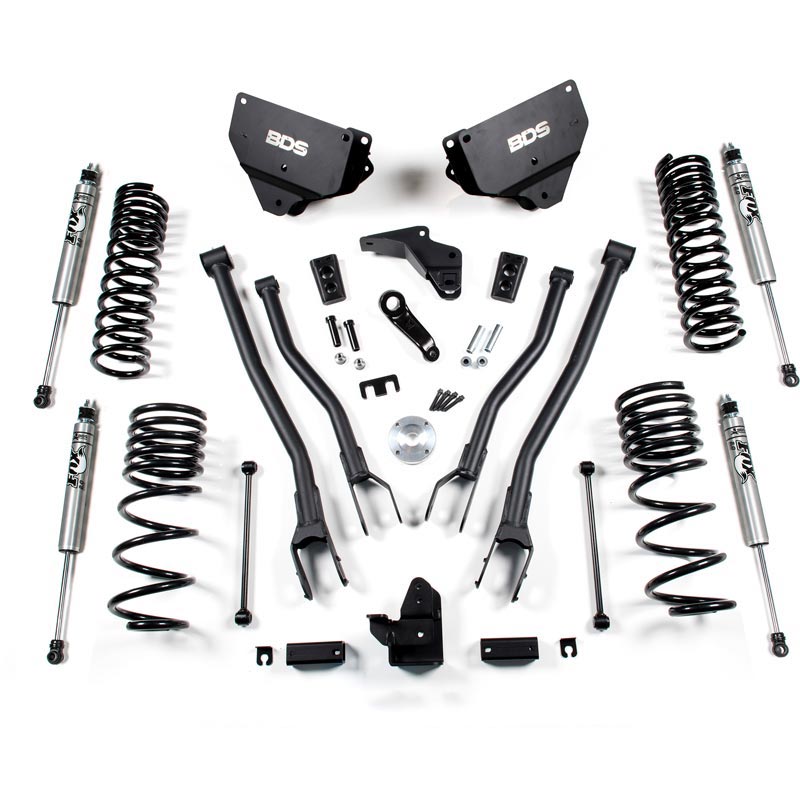

*trimming may be required KIT FITMENT NOTES BDS1602H NX2 Series Shocks KIT NOTES: Not for use with factory rear airbag suspensions Fits Diesel Models Only Will not fit RAM 2500 Powerwagon models. Will not fit Cab and Chassis models KIT CONTENTS: (1) BDS012258 - 2014-18 Ram 2500 2.5" Rear Coil Spring Replacement Box Kit (1) BDS012403 - 2013-2018 Ram 3500 4-Link Box Kit (2of2) BDS1602FS FOX 2.0 Series Shocks KIT NOTES: Not for use with factory rear airbag suspensions Fits Diesel Models Only Will not fit RAM 2500 Powerwagon models. Will not fit Cab and Chassis models KIT CONTENTS: (1) BDS012258 - 2014-18 Ram 2500 2.5" Rear Coil Spring Replacement Box Kit (1) BDS012403 - 2013-2018 Ram 3500 4-Link Box Kit (2of2)
(1) BDS012414 - 2013-18 Dodge Ram 2500/3500 4" 4-Link Box Kit (1of2) (1) BDS032401 - 2013-18 Ram 3500 / 2014-18 2500 Ram - Front Coils 4" Diesel - 5.5" Gas (2) BDS85752 - Shock- 27.40 x 16.20 x 2-3/8 - S50/EB2 (2) BDS85757 - Shock- 26.2 x 15.7 x 2-3/8 - Special/EB1 (1) BDS012414 - 2013-18 Dodge Ram 2500/3500 4" 4-Link Box Kit (1of2) (1) BDS032401 - 2013-18 Ram 3500 / 2014-18 2500 Ram - Front Coils 4" Diesel - 5.5" Gas (2) FOX98224752 - Fox 2.0 Shock 28.25 x 17.15 x 2- S50/EB1 (2) FOX98224753 - Fox 2.0 Shock - 26.85 x 16.75 x 2- Special/EB1 BDS1632H NX2 Series Shocks KIT NOTES: Not for use with factory rear coil spring suspensions Fits Diesel Models Only Will not fit RAM 2500 Powerwagon models Models equipped with a 2 piece rear driveshaft may require carrier bearing drop kit # 122405 Will not fit Cab and Chassis models KIT CONTENTS: (1) BDS012359 - 14-18 Ram 2500 3.5" Rear AirRide Box Kit (1) BDS012403 - 2013-2018 Ram 3500 4-Link Box Kit (2of2) (1) BDS012414 - 2013-18 Dodge Ram 2500/3500 4" 4-Link Box Kit BDS1632FS FOX 2.0 Series Shocks KIT NOTES: Not for use with factory rear coil spring suspensions Fits Diesel Models Only Will not fit RAM 2500 Powerwagon models Models equipped with a 2 piece rear driveshaft may require carrier bearing drop kit # 122405 Will not fit Cab and Chassis models KIT CONTENTS: (1) BDS012359 - 14-18 Ram 2500 3.5" Rear AirRide Box Kit (1) BDS012403 - 2013-2018 Ram 3500 4-Link Box Kit (2of2) (1) BDS012414 - 2013-18 Dodge Ram 2500/3500 4" 4-Link Box Kit
(1of2) (1) BDS032401 - 2013-18 Ram 3500 / 2014-18 2500 Ram - Front Coils 4" Diesel - 5.5" Gas (2) BDS85752 - Shock- 27.40 x 16.20 x 2-3/8 - S50/EB2 (2) BDS85764 - Shock- 24.80 x 14.80 x 2 - Special/EB1 (1of2) (1) BDS032401 - 2013-18 Ram 3500 / 2014-18 2500 Ram - Front Coils 4" Diesel - 5.5" Gas (2) FOX98224706 - Fox 2.0 Shock - 23.65 x 15.05 x 2- Special/EB1 (2) FOX98224752 - Fox 2.0 Shock 28.25 x 17.15 x 2- S50/EB1 BDS697H NX2 Series Shocks KIT NOTES: For rear leaf spring equipped models only. The carrier bearing drop kit (122405) is necessary for models equipped with two piece rear drive shaft. Will not fit Cab and Chassis models Not for use with factory rear airbag suspensions KIT CONTENTS: (1) BDS012317 - 2013 Ram 3500 3in Rear Box w/4in axle (1) BDS012403 - 2013-2018 Ram 3500 4-Link Box Kit (2of2) (1) BDS012414 - 2013-18 Dodge Ram 2500/3500 4" 4-Link Box Kit (1of2) (1) BDS032401 - 2013-18 Ram 3500 / 2014-18 2500 Ram - Front BDS697FS FOX 2.0 Series Shocks KIT NOTES: For rear leaf spring equipped models only. The carrier bearing drop kit (122405) is necessary for models equipped with two piece rear drive shaft. Will not fit Cab and Chassis models Not for use with factory rear airbag suspensions KIT CONTENTS: (1) BDS012317 - 2013 Ram 3500 3in Rear Box w/4in axle (1) BDS012403 - 2013-2018 Ram 3500 4-Link Box Kit (2of2) (1) BDS012414 - 2013-18 Dodge Ram 2500/3500 4" 4-Link Box Kit (1of2) (1) BDS032401 - 2013-18 Ram 3500 / 2014-18 2500 Ram - Front
Coils 4" Diesel - 5.5" Gas (2) BDS85752 - Shock- 27.40 x 16.20 x 2-3/8 - S50/EB2 (2) BDS85759 - Shock- 29.80 x 17.60 x 2-3/8 - EB1/EB1 Coils 4" Diesel - 5.5" Gas (2) FOX98224752 - Fox 2.0 Shock 28.25 x 17.15 x 2- S50/EB1 (2) FOX98224759 - Fox 2.0 Shock 30.05 x 18.45 x 2- EB1/EB1 BDS1644H NX2 Series Shocks KIT NOTES: The carrier bearing drop (122405) is necessary for models equipped with two piece rear drive shaft. Some vehicles may require rear driveshaft spacer kit 122007 to maintain adequate rear driveshaft engagement. Will NOT fit cab and chassis models. The shocks used in these kits are different than a standard 3500, do not use a different shock length or damage to the air bag will result. Can be used on SRW or DRW models. KIT CONTENTS: (1) BDS012318 - Ram 3500 Auto Level Air Suspension 3in Rear (1) BDS012403 - 2013-2018 Ram 3500 4-Link Box Kit (2of2) (1) BDS012414 - 2013-18 Dodge Ram 2500/3500 4" 4-Link Box Kit BDS1644FS FOX 2.0 Series Shocks KIT NOTES: The carrier bearing drop (122405) is necessary for models equipped with two piece rear drive shaft. Some vehicles may require rear driveshaft spacer kit 122007 to maintain adequate rear driveshaft engagement. Will NOT fit cab and chassis models. The shocks used in these kits are different than a standard 3500, do not use a different shock length or damage to the air bag will result. Can be used on SRW or DRW models. KIT CONTENTS: (1) BDS012318 - Ram 3500 Auto Level Air Suspension 3in Rear (1) BDS012403 - 2013-2018 Ram 3500 4-Link Box Kit (2of2) (1) BDS012414 - 2013-18 Dodge Ram 2500/3500 4" 4-Link Box Kit
(1of2) (1) BDS032401 - 2013-18 Ram 3500 / 2014-18 2500 Ram - Front Coils 4" Diesel - 5.5" Gas (2) BDS85752 - Shock- 27.40 x 16.20 x 2-3/8 - S50/EB2 (2) BDS85758 - Shock- 27.90 x 16.55 x 2-3/8 - EB1/EB1 (1of2) (1) BDS032401 - 2013-18 Ram 3500 / 2014-18 2500 Ram - Front Coils 4" Diesel - 5.5" Gas (2) FOX98224752 - Fox 2.0 Shock 28.25 x 17.15 x 2- S50/EB1 (2) FOX98224758 - Fox 2.0 Shock 27.95 x 17.35 x 2- EB1/EB1
